Masterpiece Of Optical Coating

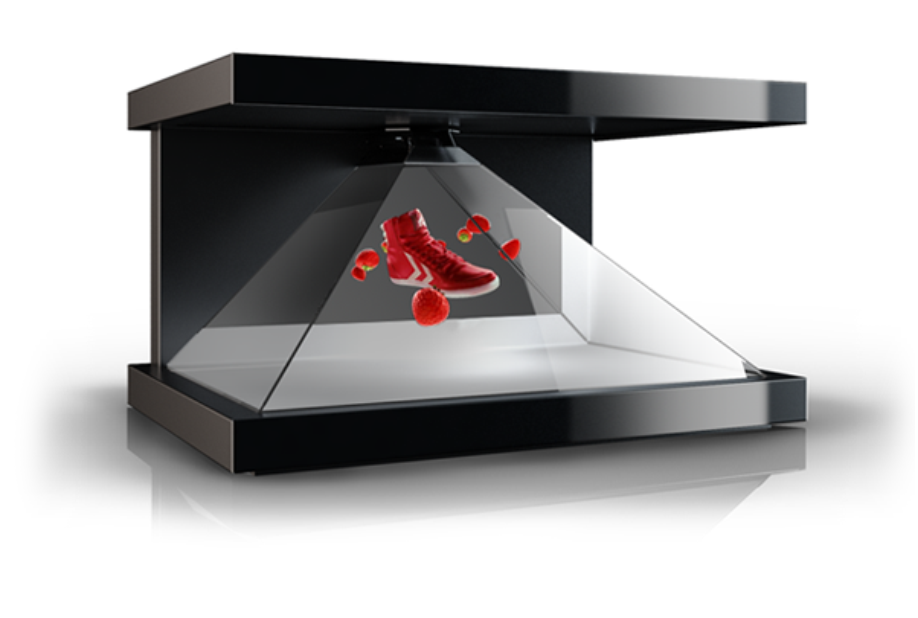

Optical Coating using for 3D Animation

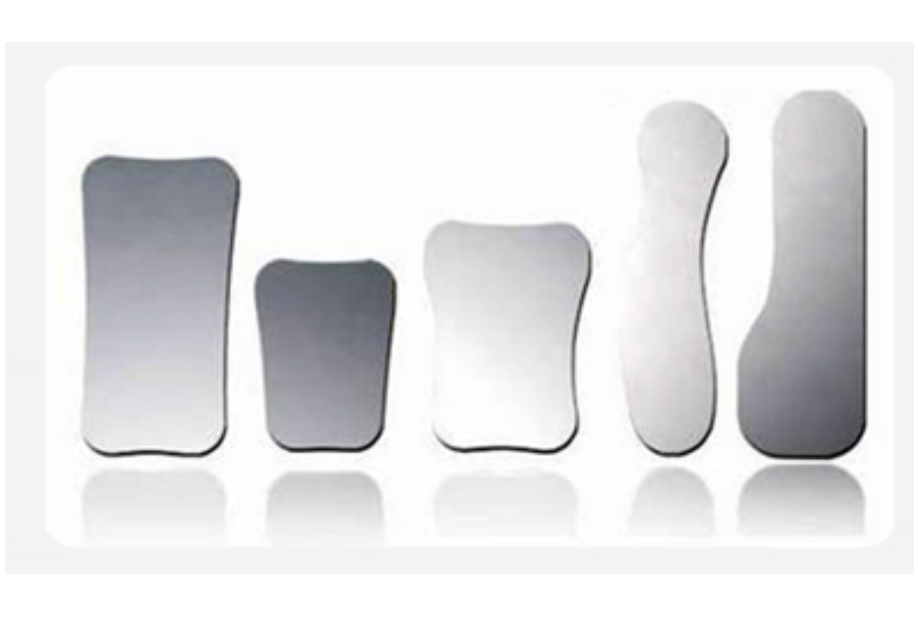

Optical Coating using for Intraoral Mirrors

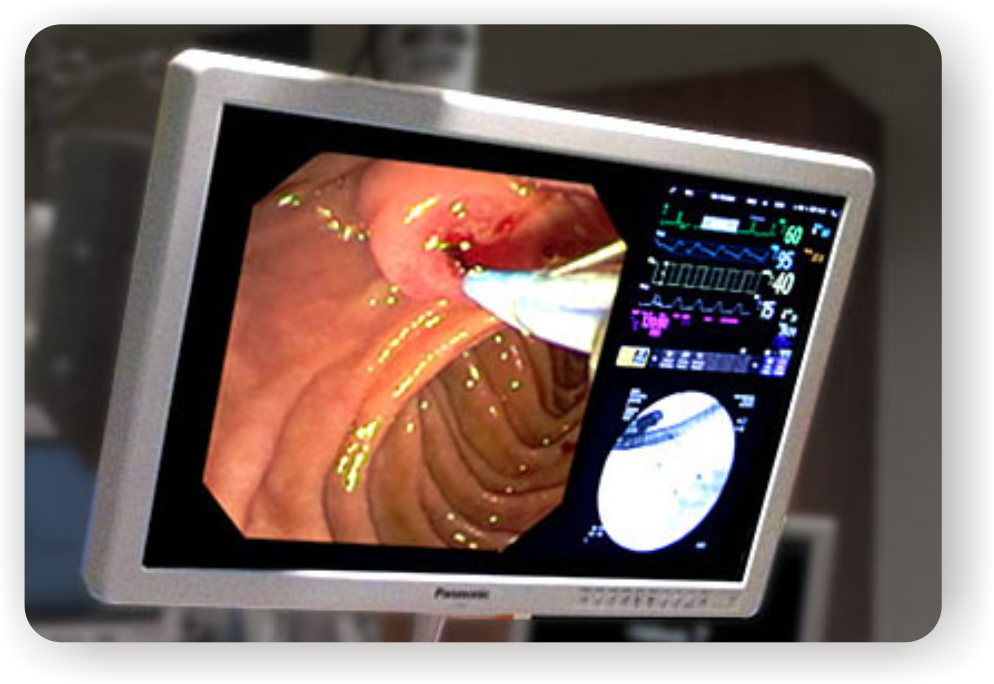

Antibacterial coating for Medical PC

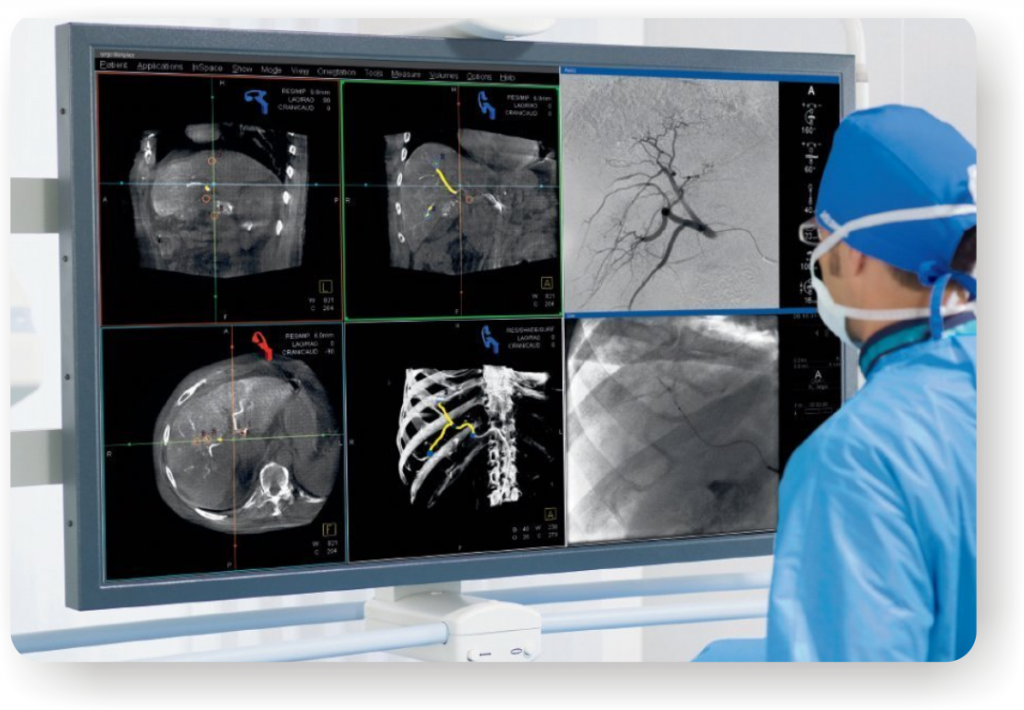

Antibacterial coating for Medical Display

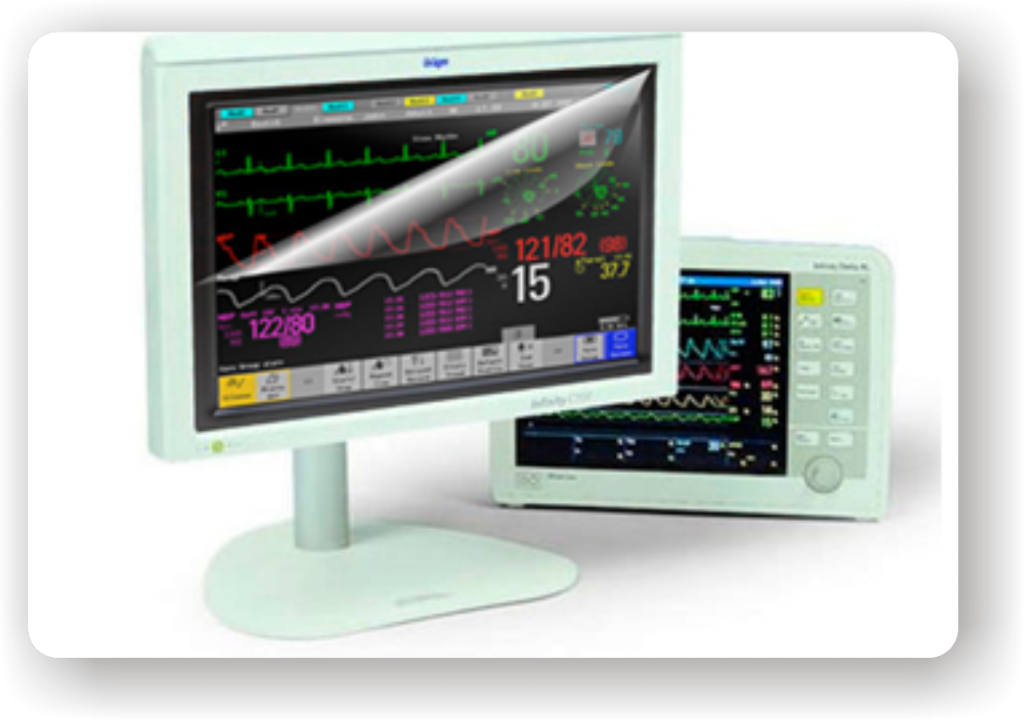

Antibacterial coating for Patient Monitor

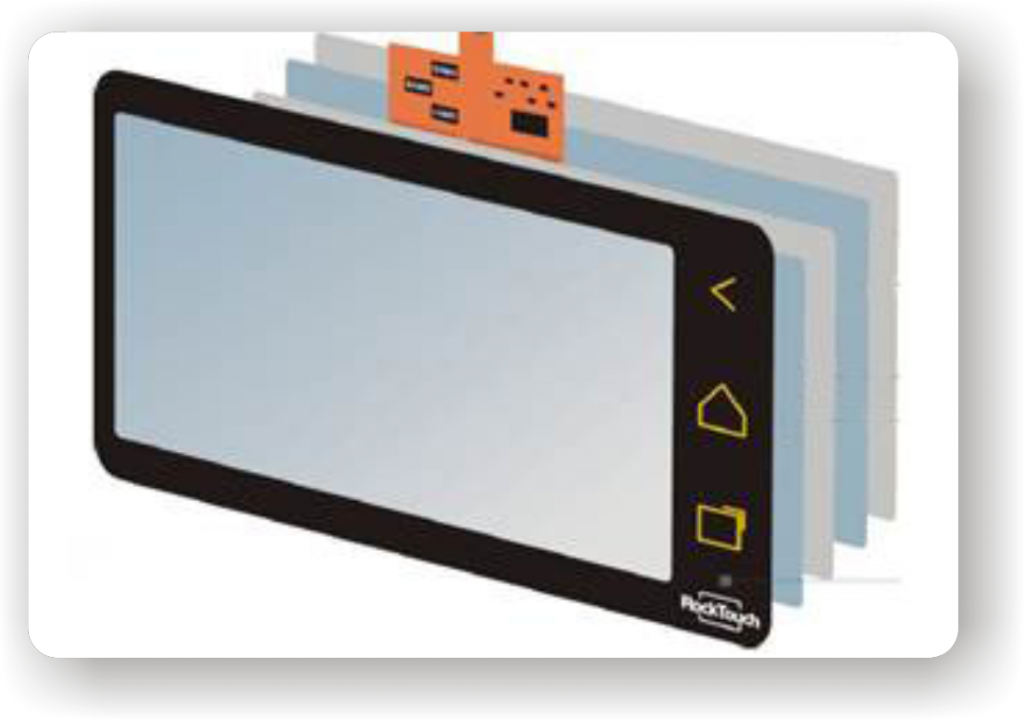

Optical coating for Touch Panel Cover Lens

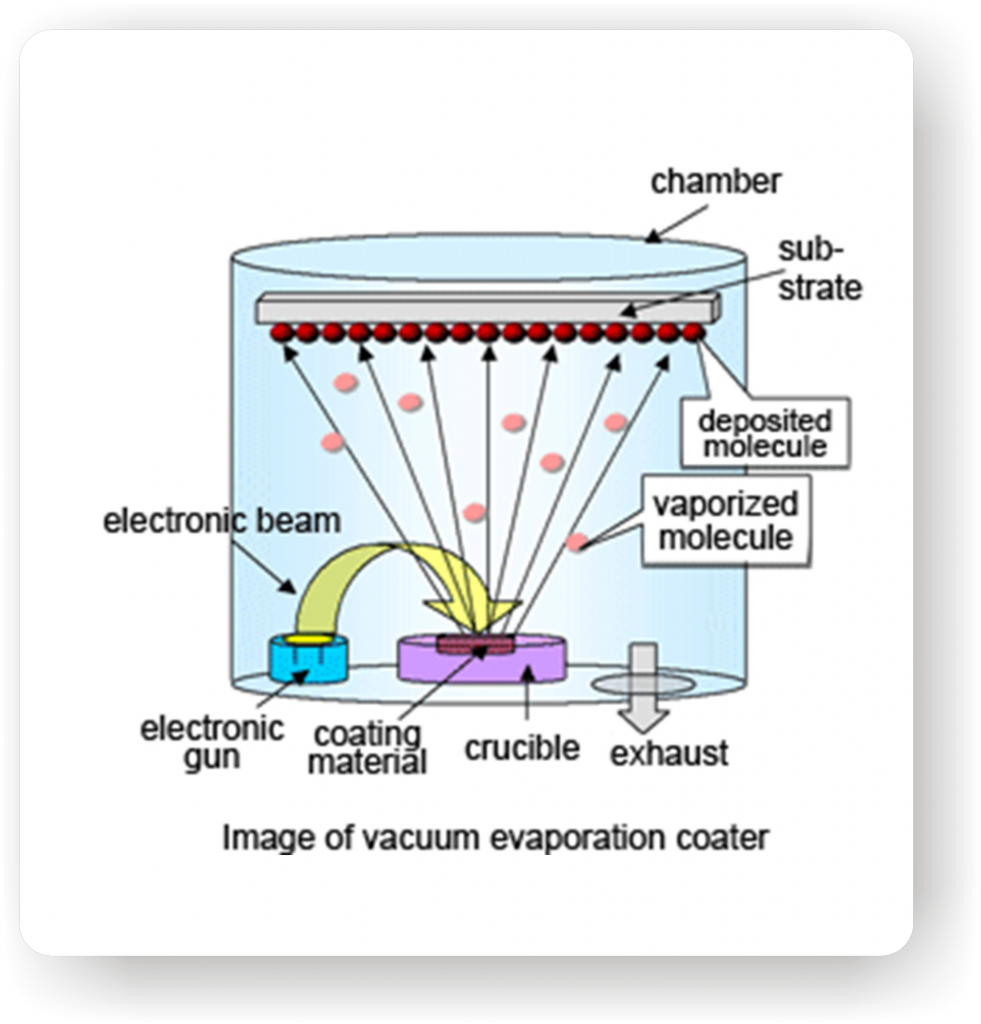

Vacuum Evaporation Process
●Vacuum Operation pressure:10-5~10-6 Torr
●Using Electronic Gun to vaporize the target to deposit on the substrate.
●Using Ion Assisted Deposition (IAD) process to enhance the coating quality.
●Using Thermal boat to vaporize AF/AS
Optical Evaporator with E-Gun/Ion Source
●There are 6 sets of 1350mm-diameter and 3 sets of 1800mm-diameter evaporators with E-gun and Ion-Source for optical coating. We also have the Asia’s largest optical evaporator (LP-2500), the largest panel size can be coated is above 65 inches.
●AG Spray Coater
The substrate can be glass or plastic. The largest size can be handled above 65 inches.
●Silk-Print Production Line
Precise silk-print machines and inspect instruments for cover lens/films.
●Oven Line / UV Cure Line
Used for ink curing or surface treatment for better adhesive strength of coated films.
●Ultra-Sound Cleaner/Roller Wash Cleaner/ Plasma Cleaner
Used for substrate cleaning by wetting/dry process.
抗菌產品抗菌效能測試
